Description

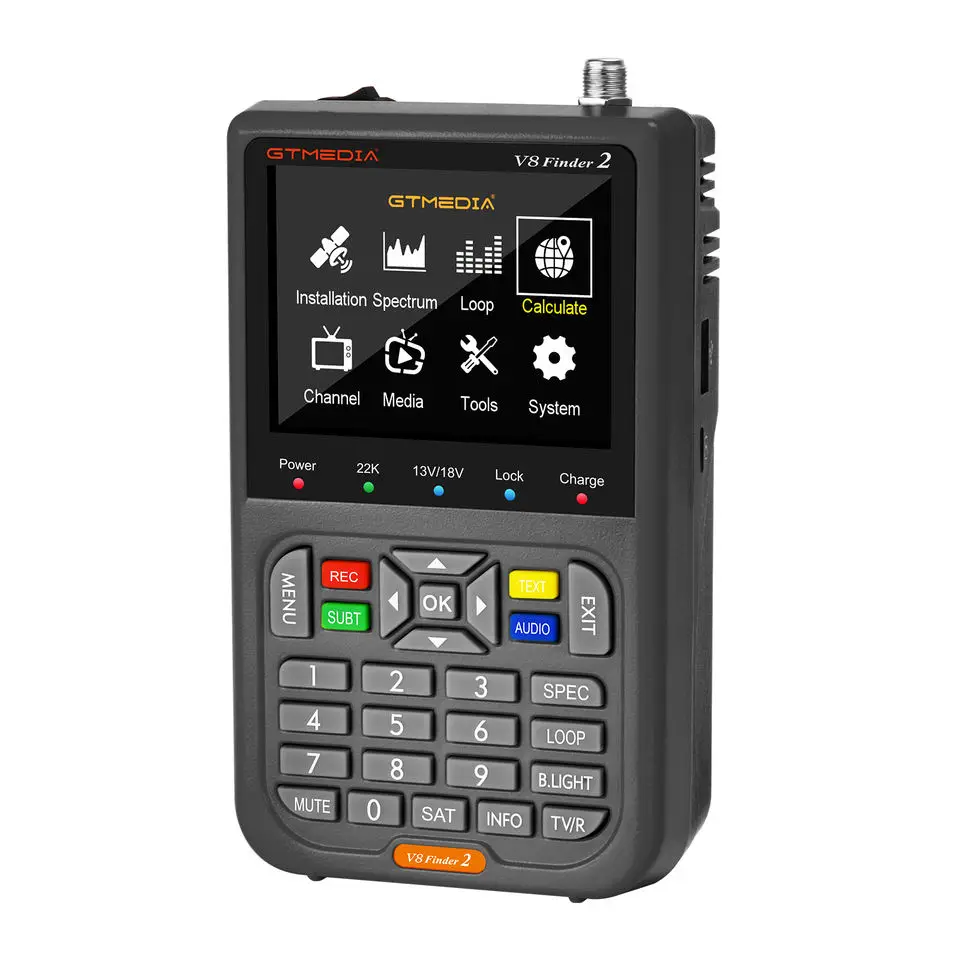

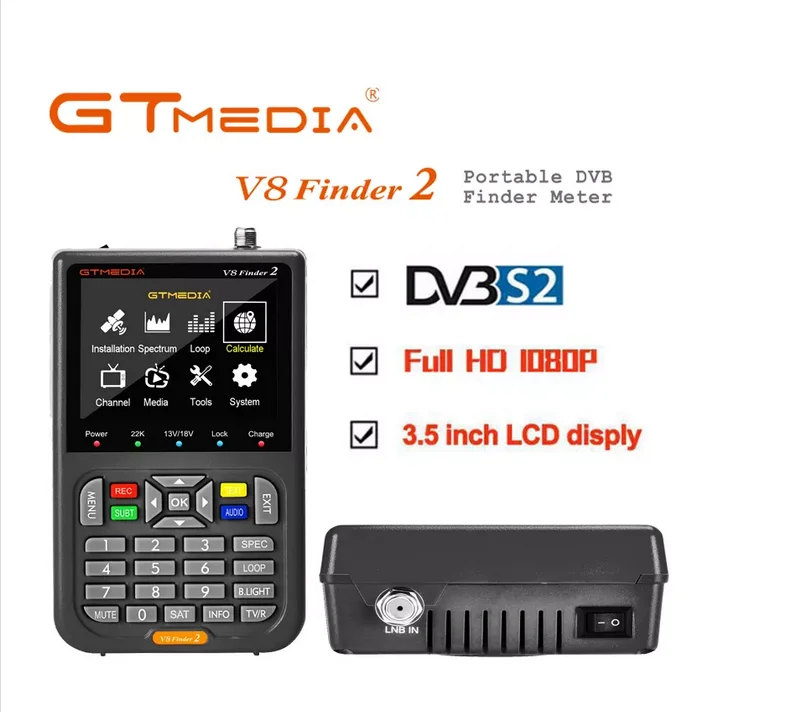

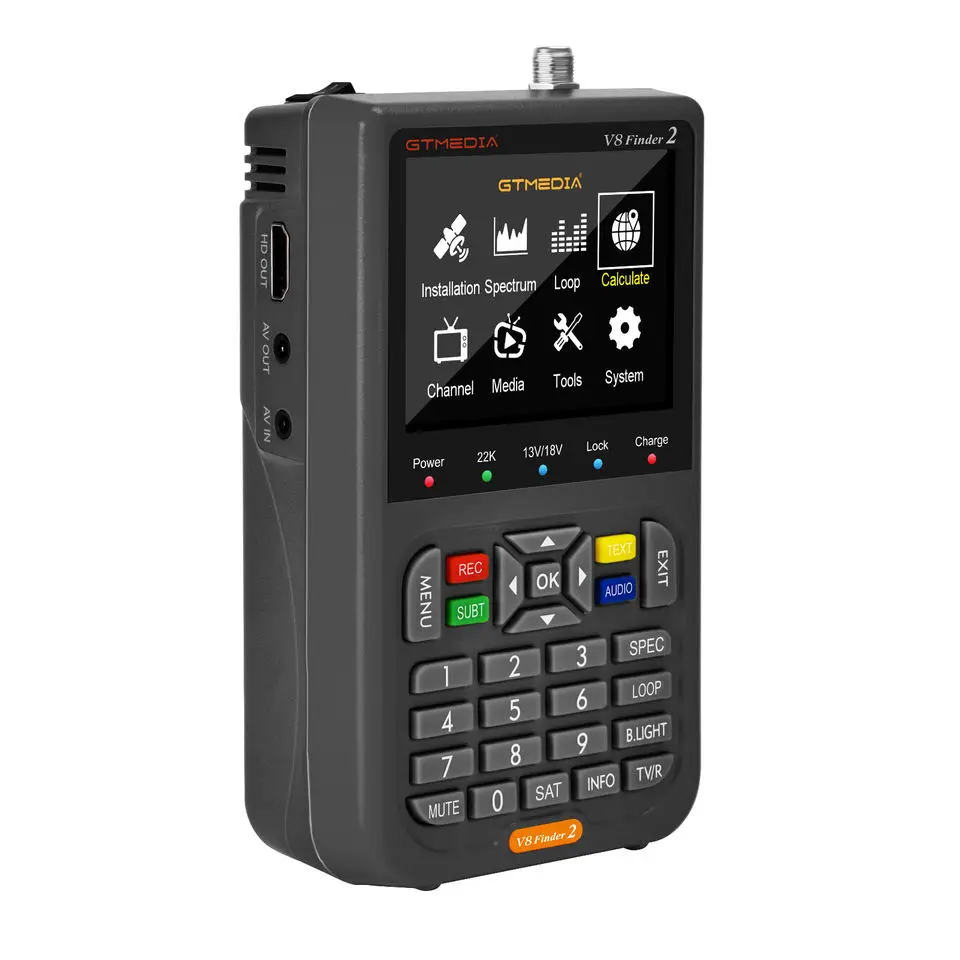

GTMedia v8finder 2 original factory manufacture dvb-s2/s2x digital satellite finder meter
GTMEDIA V8Finder2 is a DVB-S/S2 and MPEG-2/4 H.264(8 Bit) compliant handheld satellite meter.
With its compact size, light weight, intuitive user’s interface, long battery operational hours and rich feature set,
the meter provides all functions needed for installation and verification of digital Satellite TV service to residential homes or multi-dwelling units.
Product Description
| Highlight | 1.Measurements of DVB-S/S2/S2X signals; | ||||||
| 2.Digital satellite finder meter for quick setup of satellite dishes, | |||||||
| 3.3.5 Inch High Definition LCD Screen, | |||||||
| 4. Safety certification lithium ion battery (3.7V /5000 mAh), | |||||||
| 5.Support AV in and AV/HD OUT function, | |||||||
| 6.Support 13V / 18V / LOCK status panel LED display directly, | |||||||
| 7.Sound alarm for locking signal, Beep integrated | |||||||
| 8.Support for DiSEqC1.0/1.1/1.2/USALSand 22 kHz Tone, | |||||||
| 9. LNB short circuit protection, | |||||||
| 10.Support battery power display, | |||||||
| 11.Easy to carry | |||||||
| 12.Software upgrade via USB port, | |||||||
| Note: Technical support website:www.freesat.cn | |||||||
Main Features:
| Hardware specifications | Video | TV System: Automatic PAL/NTSC conversion | |||||
| Video Resolution: 720*576,720×480 | |||||||
| Audio | Type: MONO | ||||||
| Sampling rates: 32KHz,44.1KHz,48KHz | |||||||
| Configuration | CPU: Ali M3S10 | ||||||
| DDR: 1G | |||||||
| Flash: 64M SPI | |||||||
| Demodulation | M1502+Tuner M3031 | ||||||
| LCD FEATURES | 3.5 Inch TFT-LCD Screen | ||||||
| Display Format: 320 RGB*240 | |||||||
| Active area: 70.08(H)*52.56(V)MM | |||||||
| LED Indicator | Support 7 different state different color LED display, | ||||||
| Button | 28 key operation | ||||||
| Rear Panel | LNB IN (Frequency Range950MHz to 2150MHz) | ||||||
| HD OUT (UP to 1080P) | |||||||
| AV OUT (4-pin 3.5 mm * 14MM jack) | |||||||
| AV IN (4-pin 3.5 mm * 14MM jack) | |||||||
| 1*USB port ( Software upgrades for USB) | |||||||
| DC IN (DC12V/1.5A) | |||||||
| Sortware Features | OSD Language | OSD Multi-language for options (EnglishGermanFrenchPortugueseSpanishItalianRussianTurkishPolishArabic FarsiEspanolDeutsch) | |||||
| Setting guide | Boot wizard supports fast selection of language and satellite region, | ||||||
| Channel Search | Channel search in automatic, manual and network search | ||||||
| Easy Menu | Plug and Play installation, with an easy to use Menu System | ||||||
| Time Setting | Support multiple regions local time setting. | ||||||
| SoftUpgrade | Software upgrade for USB | ||||||
